Corneal Topography System

Corneal Topography System

Main Challenges

Develop and assemble internal components with certain possible position within already developedmechanical structure.

Create an integrated shape between the Corneal topography system and its base platform.

Integrate in the design concept various external technical elements, at the same time achieving high aesthetics with a medical user centered design, and a patient friendly look.

Mold making of the complex shape.

Design Results

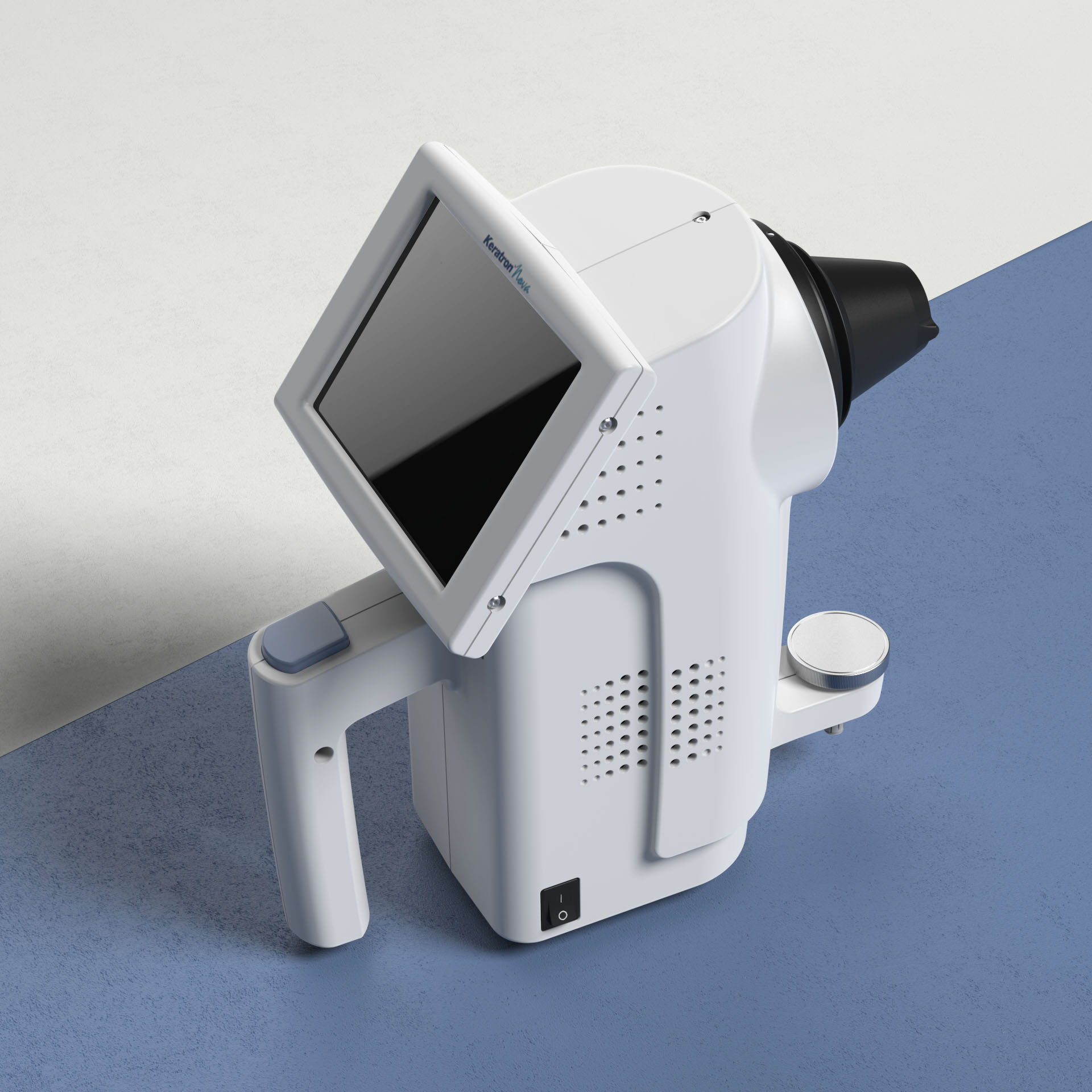

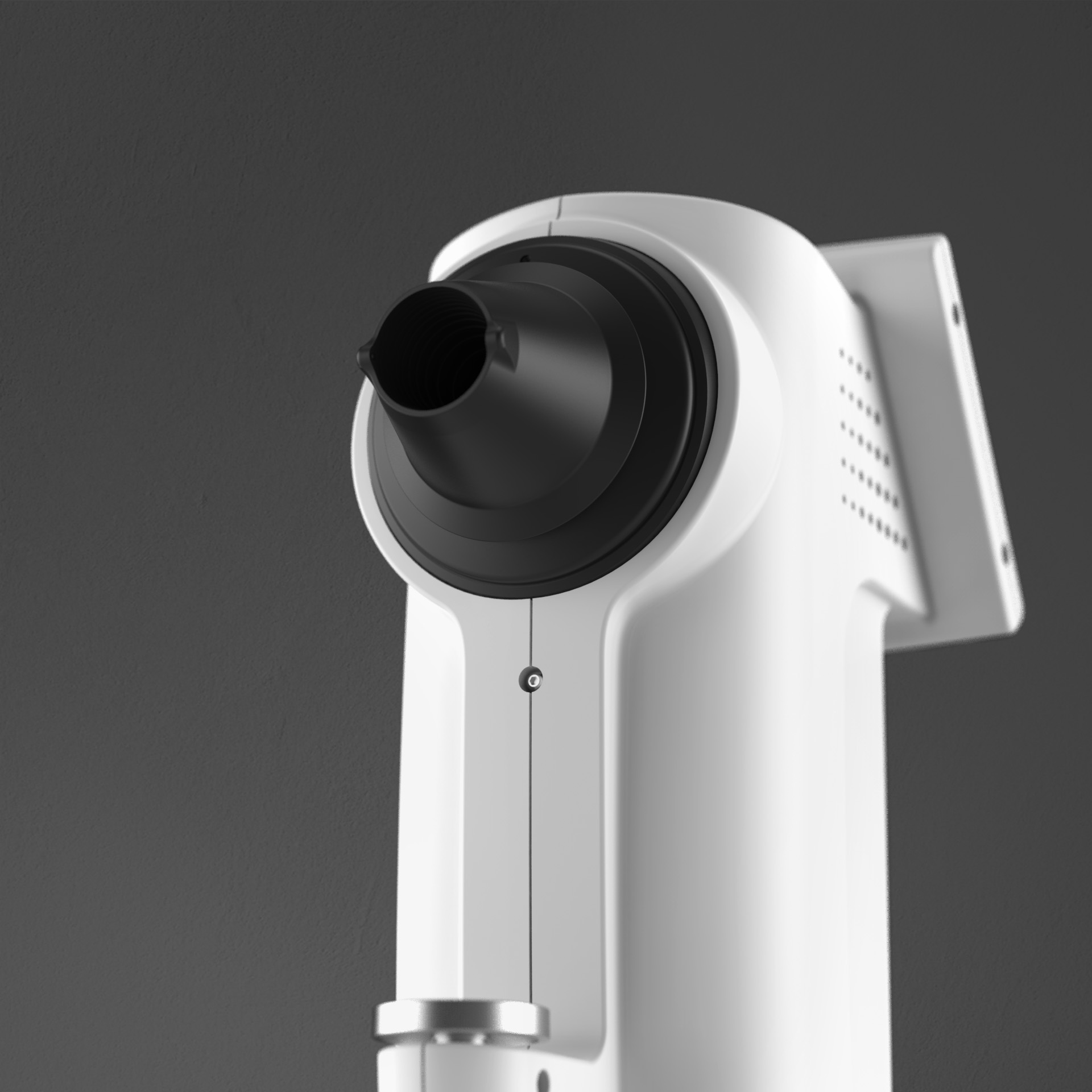

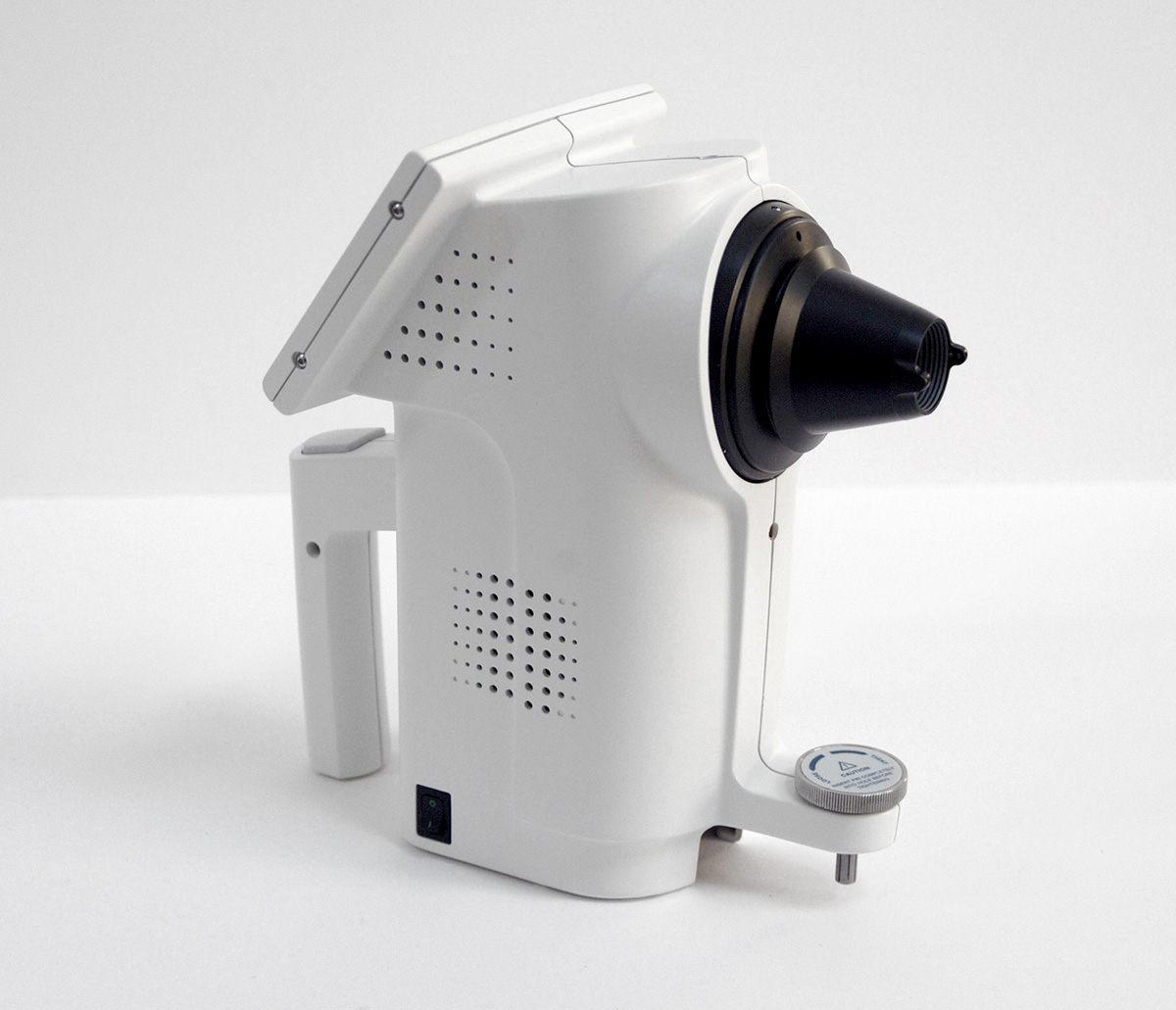

User centered approach ensures high functionality, smooth and friendly look, outstanding ergonomicfeatures, maximum comfort and efficiency.

Patient friendly design of external technical elements.

Special design of the ventilation area combines functionality with strong aesthetics.

Appearance of integrated shape between the base platform and device.

Special shape of the handle is suitable for small device, ensures maximum security, at the same time beingconvenient for different dimensions of the operator’s hands.

Various functions integrated into the handle and specially positioned functional button.

Ergonomic position of the screen to ensure its full visibility during the procedure.

Engineering and Mold Making Results

Maximum strength of the open shape handle by implementing preliminary mechanical testing of the device.

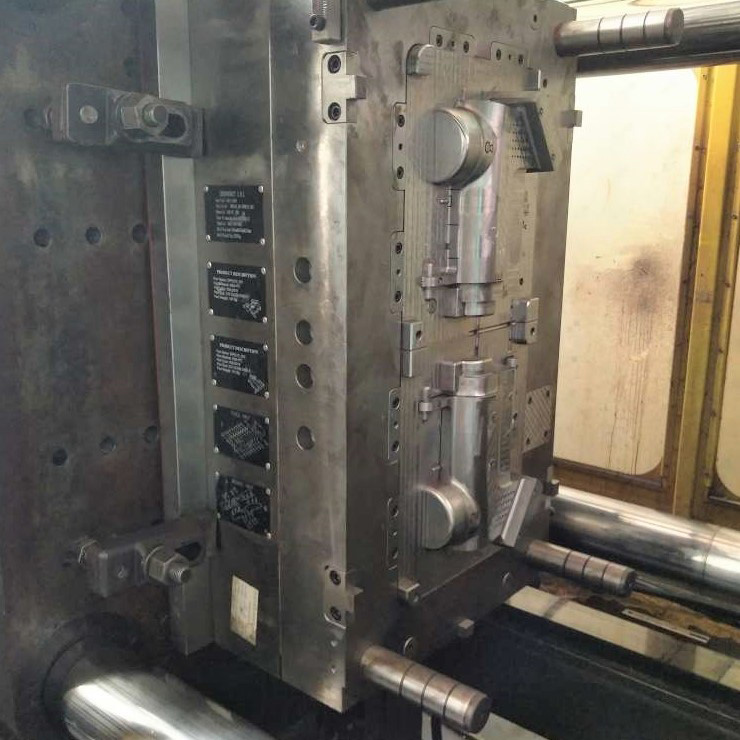

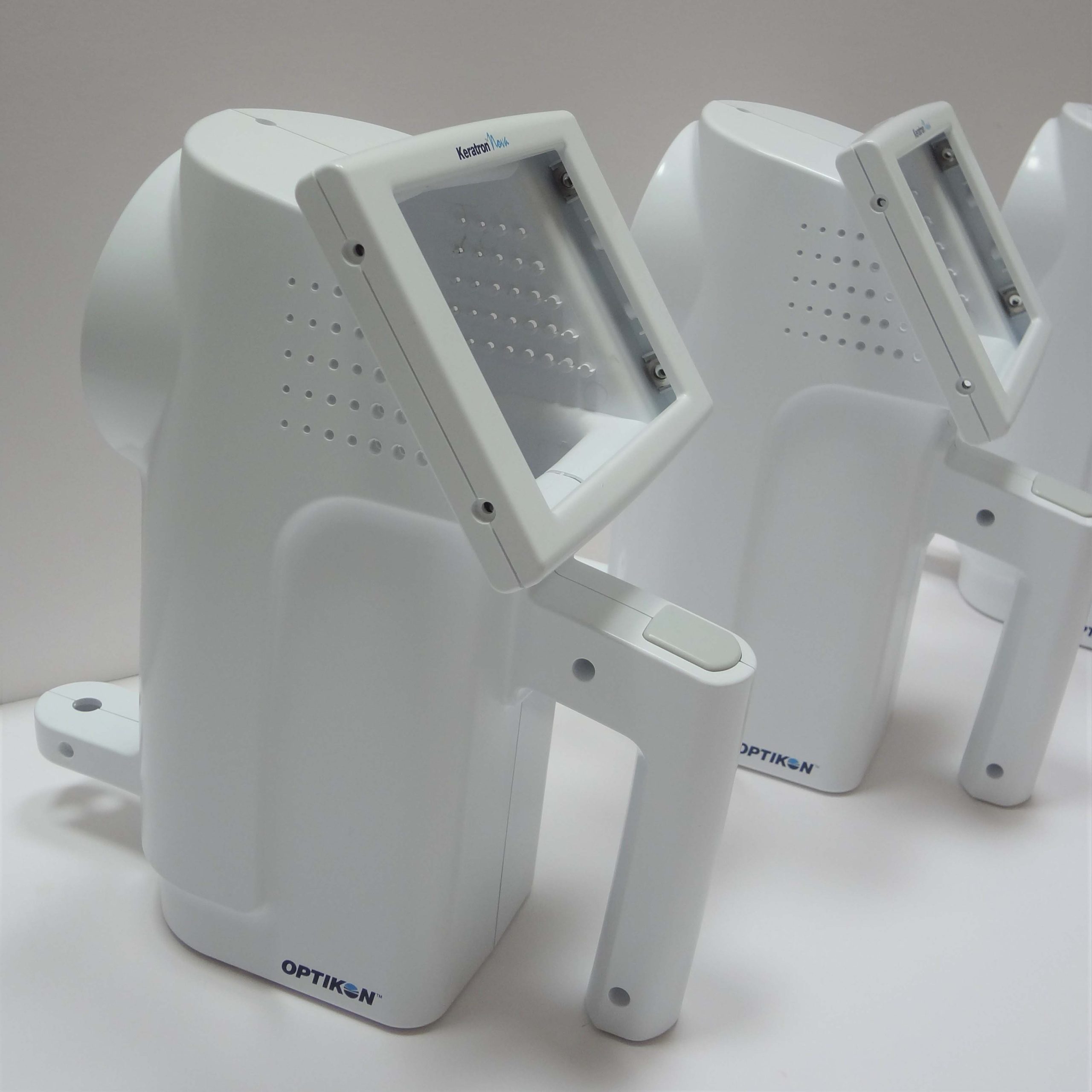

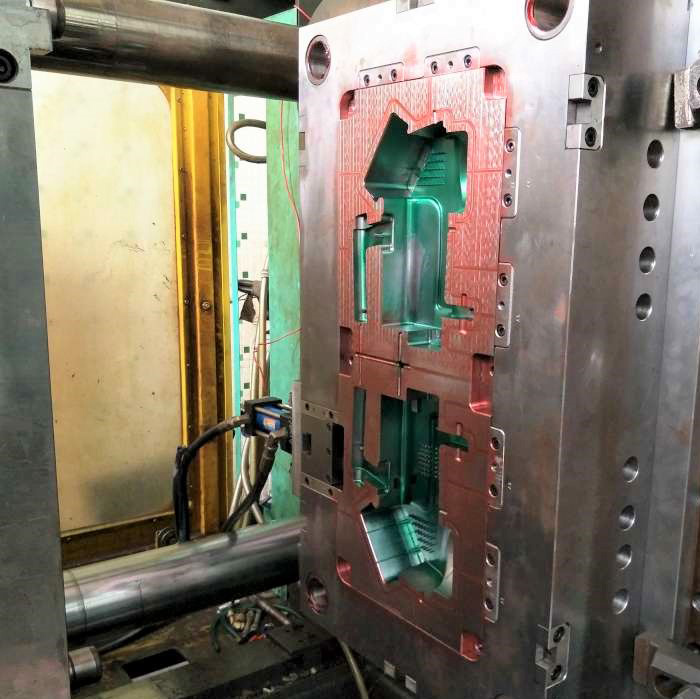

Good quality and tolerances of the molded parts, thanks to special attention to the challenges of moldingthe complex shape of the main housing
Efficient assembly and interaction between internal electronic and housing parts by developing a specialinternal component to support internal parts.
